Communication Systems

Interactive demonstrations for the book. They run in any web browser, on a computer or a phone, with nothing to install.

Interactive demos

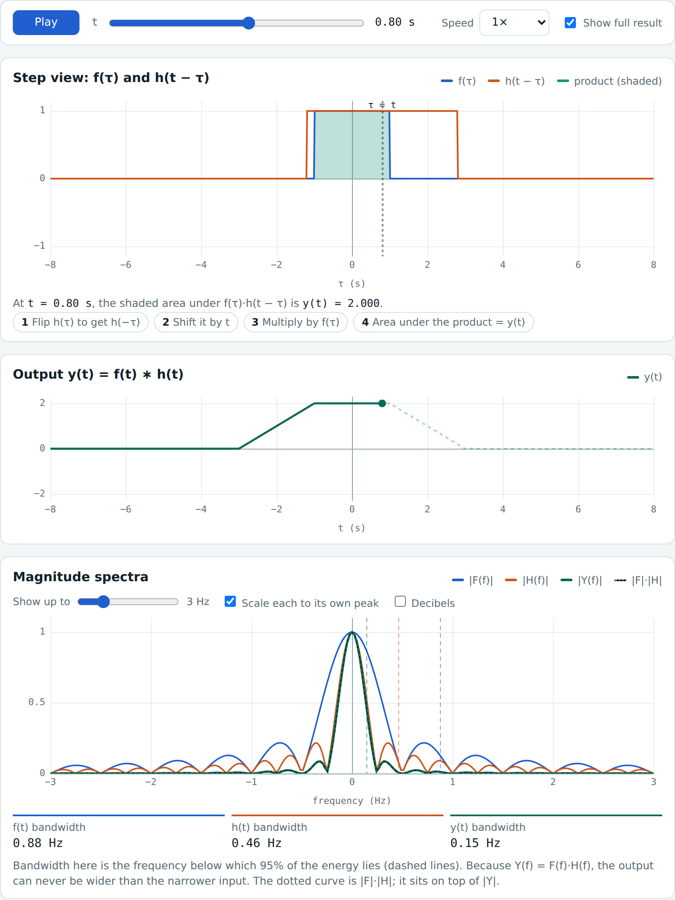

Convolution Lab showing two rectangular pulses convolved into a trapezoid, with their spectra
Chapter: Fourier Transform

Convolution Lab

Pick two waveforms and watch convolution happen step by step: flip, shift, multiply and integrate. Switch to multiplication mode to see modulation and sampling, and compare the spectra in both cases.

Open the Convolution Lab

More demos, for amplitude and frequency modulation, will be added here.
